In the world of industrial ergonomics, few names carry as much weight—literally and figuratively—as Tecna. Manufactured in Italy, Tecna tool balancers are renowned for their rugged construction and precision engineering.

Whether you are managing a high-stakes automotive assembly line, setting up an ESD-safe electronics workstation, or looking for a durable solution for EV cable retractors, Tecna offers a specific model engineered to solve your problem.

In this guide, we dive deep into the Tecna product line available at ToolBalancersUSA.com, ensuring you have the exact data you need to choose between zero gravity tool balancers and spring retractors for your specific application.

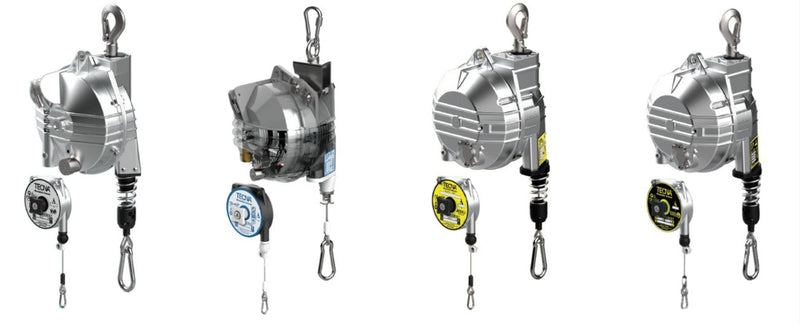

Tecna Zero Gravity Tool Balancers: True Weightlessness

When an operator needs to handle a heavy tool (like a spot welder or a large pneumatic drill) for hours at a time, fatigue is the enemy. This is where Tecna Zero Gravity Tool Balancers shine.

Unlike standard retractors that pull the tool upward, a zero-gravity balancer uses a conical drum mechanism. This technology keeps the tension constant throughout the entire cable stroke. The result is that the tool feels "weightless." An operator can let go of the tool in mid-air, and it will stay exactly where they left it.

1. The Mid-Range Workhorses: Tecna 9354 – 9359 Series

These are the most common industrial balancers for assembly lines. They feature a durable die-cast aluminum body and stainless steel cables.

• Weight Capacity: 8.8 lbs to 55 lbs (4kg – 25kg) across the series.

• Stroke Length: 6.6 ft (2000mm).

• Best For: Heavy pneumatic drivers, rivet guns, and strapping tools.

2. The Heavy Hitters: Tecna 9361 – 9371 Series

For heavier industrial applications, such as suspending large hydraulic tools or X-ray equipment, you need the next step up in power.

• Weight Capacity: 22 lbs to 231 lbs (10kg – 105kg).

• Stroke Length: 6.6 ft (2000mm).

• Safety Features: Includes a safety device against load dropping due to spring breakage (standard on capacities >3kg).

The Rise of EV Cable Retractors: From Garages to Parking Lots

One of the fastest-growing applications for Tecna spring retractors is in the Electric Vehicle (EV) sector. Loose charging cables pose a tripping hazard and are prone to damage from being run over. However, not all retractors are built for the demands of heavy DC fast-charging cables or outdoor elements.

Level 2 Chargers (Indoor/Light Duty)

For standard garage setups or lighter commercial cables, you need a retractor that keeps the cable off the ground without fighting the user.

• The Go-To Model: Tecna 9313.

• Specs: Supports 4.4 – 6.6 lbs (2 – 3 kg) with a stroke of 5.2 ft (1600mm).

• Application: Perfect for suspending standard EV charging cables in residential garages or fleet maintenance bays.

DC Fast Charging & Outdoor Use (Heavy Duty)

As charging infrastructure expands to outdoor lots, cables are becoming heavier (to handle higher amperage) and longer. Small retractors cannot handle this weight.

1. Extended Reach: The Tecna 9339 The Tecna 9339 is essential for commercial stations where users handle heavier cables.

• Specs: Supports 17.6 – 22 lbs (8 – 10 kg) with a significantly longer stroke of 8.2 ft (2500mm).

• Stronger and longer cable travel: This series can handle cables up to 31lbs (Tecna 9340) and comes with even longer cable, up to 14.7ft (9340/4,5)

• Why it works: The extended stroke allows the cable to reach the rear charge port of a vehicle while retracting high enough to clear the ground when not in use.

2. The Outdoor Specialist: Tecna 9339IL Standard aluminum or steel balancers will oxidize and seize when exposed to rain, snow, and salt. For these environments, you must use the Tecna 9339IL. This belong to the rust-free line, which preforms very well even when used outdoor

• The Difference: This model features a Rilsan® coating on the body. Rilsan is a high-performance polyamide that seals the aluminum against corrosion, moisture, and chemicals.

• Internals: It is equipped with stainless steel internal mechanics to prevent rusting inside the housing.

• Application: Open-air charging stations, car washes, and food processing plants.

Industry Note: According to data from ChargePoint and other networks, cable damage is a leading cause of downtime. Using a dedicated retractor like the 9339IL extends cable life significantly. You can read more about Managing EV Cable Safety on leading industry news sites.

For more insights on setting up charging stations, read our guide on Cable Retractors for EV Charging.

Selection Guide: How to Choose the Right Tecna Model

Selecting the correct balancer is critical. If you undersize a balancer, the spring will snap; oversize it, and the operator will struggle to pull it down.

1. Weigh Everything: Include the tool, the air hose, fittings, and accessories.

   • Example: Tool (15 lbs) + Hose (2 lbs) = 17 lbs total. You would need a Tecna 9356 (Capacity 15.4–22 lbs).

2. Determine the Motion:

   • Floating Tool: Choose a Zero Gravity Balancer (e.g., 9354 series).

   • Retracting Cable: Choose a Spring Retractor (e.g., 9313 or 9339).

3. Check the Environment:

   • If you are outdoors or in a wash-down area, ensure you select a model with Rilsan coating or Stainless Steel components (often denoted by "IL" or "F" series).

For verified load charts and technical drawings, we recommend cross-referencing with the Official Tecna Balancers Page. or reach out to our experts directly at contact@toolbalancersusa.com

Why Buy Tecna from Tool Balancers USA?

When you choose a Tecna balancer, you are investing in safety. At ToolBalancersUSA.com, we ensure you get:

• Authentic Tecna Products: Verified Italian manufacturing.

• Full Inventory: From the light-duty 9311 to the industrial 9369.

• Technical Support: We help you match the specific weight and stroke to your needs.

Ready to upgrade your workflow? Browse our full collection of Tecna Tool Balancers today.
