Introduction: Do You Need a Tool Balancer?

Does your operation require repetitive use of power tools? Are you working with heavy or cumbersome tools that create fatigue or safety concerns? If so, a tool support system like a spring tool retractor or zero gravity tool balancer might be the right solution for you.

But which one do you need? Should you get a long cable travel model, or is a simple cable extension sufficient? Does the operator need to walk back and forth along a workstation with the tool? Choosing the right tool balancer involves understanding your tool's weight, work environment, and specific operational needs.

This guide will walk you through how to pick a tool balancer, how to select tool retractors, and how to find the best setup for your workspace.

1. Determine Your Tool Weight

Every spring tool retractor and zero gravity tool balancer is rated for tools of a certain weight. It's crucial to ensure your tool falls within the balancer's supported weight capacity range

Don't forget to include:

• The base tool weight

• Accessories

• Hoses and cables

Example: A spring balancer may support 2–4 lbs. If your drill weighs 3 lbs and has a 0.5 lb hose attached, it fits. But if it’s 5 lbs total, you’ll need the next size up.

Tool balancers are available for a wide range of weights:

• Light-duty: 0.5 – 10 lbs

• Medium-duty: 10 – 31 lbs

• Heavy-duty: 31 – 660 lbs

2. Assess Cable Travel Requirements

Cable travel (also called "stroke" or "cable length") is how far the tool can move up and down. Standard balancers offer 4–10 feet of cable travel. Retractors can reach up to 15 feet.

Tip: If your balancer must be mounted high due to ceiling height, a cable extension may be more cost-effective than choosing a balancer with a longer cable travel.

Ask yourself:

• How high do you need the tool to retract after use to be out of the way?

• Is the operator tall or short?

3. Spring Tool Retractor vs. Zero Gravity Tool Balancer

Spring Tool Retractor:

• Provides retraction force to lift the tool upward

• Useful for basic repetitive tasks

• Tool will rise when released

• More economical

• Usually for tools under 31lbs

Zero Gravity Tool Balancer:

• Keeps the tool suspended in place, with virtually no upward pull

• Ideal for precision applications (e.g., welding, electronics)

• Easier to position and operate

• Usually for much heavier tools

Application Examples:

• Spring retractors: Automotive shops, general assembly, pallets manufacturing

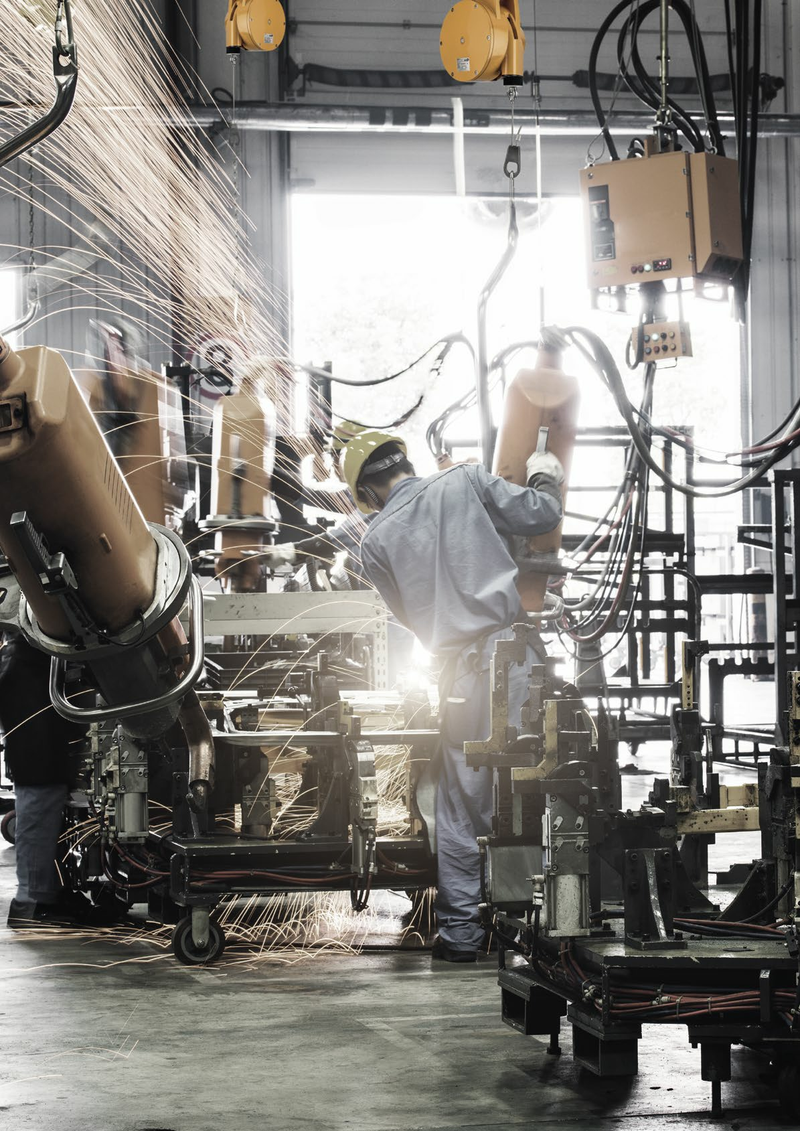

• Zero gravity: Aerospace manufacturing, Spot Welding, Meat processing

4. Cable Material Options

Most balancers use stainless steel cable, known for durability and resistance to wear. However, some environments require:

• Polypropylene rope: Lightweight and corrosion-resistant

• Dyneema rope: Stronger than steel by weight, great for sensitive applications

Choose based on:

• Cleanroom requirements

• Electrical sensitivity

• Outdoor or corrosive environments

5. Environmental and Safety Certifications

Depending on your work environment, you may need special certifications:

• ATEX-certified balancers: Safe for use in explosive environments (e.g., paint shops, refineries)

• ESD-safe balancers: Prevent static discharge when working with electronics

• Food-grade balancers: Made with corrosion resistant materials and food grade grease, for food processing and packaging.

• Cleanroom balancers: Designed for minimal particle emission

Always match certification to your industry’s safety standards.

6. Installation Space and Suspension

Tool balancers come in a variety of sizes and shapes. Measure your mounting space to ensure the balancer fits.

Consider:

• Ceiling height

• Available space above the workstation

• Mounting on a tool rail or workstation beam

Note: Some balancers are compact for tight installations; others may require additional clearance.

7. Operator Mobility: Fixed vs. Rail Mounting

If your operator needs to move along a workstation or assembly line, a tool rail may be ideal. Tool rails allow the balancer to glide along the length of the station using a trolley system.

Benefits:

• Reduces operator fatigue

• Keeps tools directly above user

• Supports smoother workflow

8. Other Considerations

Here are a few additional factors that might affect your purchase:

• Maintenance and parts availability: Choose a reputable brand with spare parts support.

• Locking mechanism: Some balancers have ratchet locks to hold tools in position.

Final Thoughts: How to Pick the Right Tool Balancer

Choosing the right tool support system is essential for improving efficiency, safety, and operator comfort. Whether you're outfitting a single workstation or designing an entire assembly line, your decision should be based on tool weight, cable travel, application, and environment.

For most users:

• Use spring retractors for basic tool support

• Use zero gravity balancers for precision tasks

• Add tool rails for operator mobility

• Check for environmental certifications before buying

Need help selecting the right balancer? We’re happy to help you choose the right spring retractor or zero gravity tool balancer—even if you’re buying it elsewhere.
