Introduction

In industrial environments, managing tools safely and efficiently is a constant challenge. Operators need their tools within reach but also protected from accidental drops, tangling, or unnecessary strain. This is where locking retractors come into play.

Among the leading products in this space are the Tecna 9346L, 9346, 9347, 9348, 9349, and 9350 models, along with their long-cable versions such as 9346L/4,5, 9346/4,5, 9347/4,5, 9348/4,5, 9349/4,5, and 9350/4,5 models which provide nearly 15 feet of cable travel. These retractors combine durability, precision, and operator safety in demanding workplaces.

What Is a Ratchet Lock?

A ratchet lock is a mechanical system that allows a tool retractor or balancer to lock the cable in place at a chosen length.

Without a ratchet lock: the retractor automatically pulls the tool back to its resting position when released.
With a ratchet lock: the operator can pull the cable out, let it engage the ratchet mechanism, and “freeze” the tool at a comfortable working distance.

This feature is especially useful when tools, hoses and cables need to remain suspended in position for longer periods, or if you are using it to retract a EV charging cable and you don't want the retractor to be pulling on the cable while charging.

All Tecna balancers with a ratchet lock have the option of disabling the ratchet lock.

Tecna’s Locking Retractors: Models 9346L–9350

Tecna, an Italian manufacturer recognized for its precision tool balancers, offers a range of ratchet lock retractors. The 9346–9350 series is designed for industrial environments where heavy-duty reliability is critical.

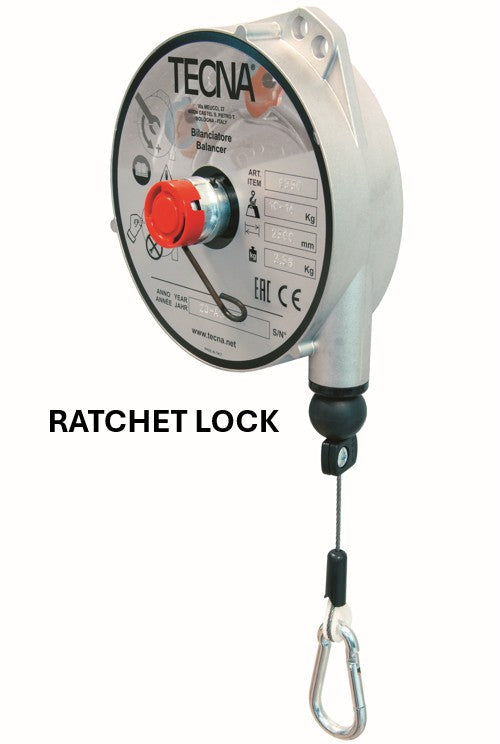

Tecna 9346L

Capacity: 1.10 to 4.41 lb (0.5 to 2 kg)
Cable Length: 8.2 ft (2500 mm)

Tecna 9346

Capacity: 4.41 to 8.82 lb (2 to 4 kg)
Cable Length: 8.2 ft (2500 mm)

Tecna 9347

Capacity: 8.82 to 13.2 lb (4 to 6 kg)
Cable Length: 8.2 ft (2500 mm)

Tecna 9348

Capacity: 13.2 to 17.6 lb (6 to 8 kg)
Cable Length: 8.2 ft (2500 mm)

Tecna 9349

Capacity: 17.6 to 22.0 lb (8 to 10 kg)
Cable Length: 8.2 ft (2500 mm)

Tecna 9350

Capacity: 22.0 to 30.9 lb (10 to 14 kg)
Cable Length: 8.2 ft (2500 mm)

Long Cable Travel Versions: 9349/4,5, 9350/4,5, etc.

While the standard Tecna models provide ample cable travel for most workstations, some environments require extra length. This is where Tecna’s /4,5 series comes in.

These models, such as the 9349/4.5 and 9350/4.5, provide nearly 15 feet of cable travel—significantly longer than standard retractors.

Explosion Environments, ESD safe, Food Industry and Dyneema rope options are also available from TECNA

Kromer Locking Retractors

While Tecna provides a robust lineup, Kromer (a German manufacturer) also offers retractors with ratchet lock functionality. Known for their rugged design and precision spring systems, Kromer retractors are widely used in Europe and North America.

Key highlights of Kromer locking retractors:

Durability: Built for continuous use in demanding environments.
Range: Multiple models cover light to heavy-duty tool weights.
Ratchet Option: Available across selected models, giving flexibility to operators.

Including both Tecna and Kromer in your evaluation ensures you can find the perfect solution tailored to your specific weight capacity and cable travel needs.

Ratchet Lock Functionality and Mounting Guidelines

Most ratchet locking balancers operate using a mechanism that combines gravity and centrifugal force. Because of this design, the balancer must be suspended vertically in order for the ratchet lock to function correctly. If the unit is mounted horizontally, the locking feature will not engage as intended, since the internal components rely on downward pull and rotational movement to trigger the lock. For this reason, ratchet locking balancers are best installed overhead or on a vertical support structure where tools can be retracted and locked at the proper working height.

There are exceptions to this - contact us if you have any questions.

One safety note: the automatic ratchet lock is meant for parking a tool at a working height — not for holding the load while you change tools. Before you add or remove weight from the hook, support the tool by hand. Don’t rely on the lock to hold during a load change.

Ratchet Lock vs. Manual Lock: What’s the Difference?

A ratchet lock works automatically through gravity and centrifugal force inside the balancer. When the operator pulls the cable slowly the ratchet engages by itself every few inches, holding the tool at that length until the cable is slightly pulled again to release it and retracted quickly. In contrast, a manual lock requires the operator to actively engage or disengage a lever, switch, or knob to fix the cable in position. While ratchet locks are faster and more convenient for repetitive tasks, manual locks provide more deliberate control in situations where tools must remain fixed for longer periods without accidental release. Ratchet locks are most popular on Spring Tool retractors where there is a constant retracting force. While manual locks are more common on Zero Gravity balancers. Although there are some exceptions.

Choosing the Right Locking Retractor

When selecting a locking retractor, consider the following:

Tool Weight: Each Tecna model (9346–9350) corresponds to a specific weight range.
Cable Travel: Choose standard or /4.5 models depending on workstation layout.
Locking Needs: Decide if you require the ratchet lock engaged full-time or only occasionally.
Durability: For continuous operation, Tecna and Kromer both offer industrial-grade reliability.
Environment: If tools are used in welding, painting, or dusty conditions, ensure the retractor housing is appropriate for the environment.

Ratchet Lock Demonstration Video

1. This video demonstrates the Tecna Locking Tool Balancer series (models 9346L–9350) in action. It shows how the built-in ratchet lock allows operators to secure tools at the desired working height, improving ergonomics, safety, and efficiency in industrial applications.

2. This video features a transparent Kromer retractor with the ratchet lock visible inside. It clearly demonstrates how the mechanism works—showing how to engage the lock to hold the cable at a set length and how to disengage it for smooth retraction

Locking tool balancer FAQ

What is a tool balancer with a ratchet lock?

It’s a spring balancer or retractor with a built-in ratchet that holds the cable at a chosen height, so the tool stays parked where you set it instead of being pulled back up by the spring. Release it and it retracts as normal.

How do I lock and unlock it?

Let the tool rise slowly to lock it — the ratchet catches by itself every few inches. To release, pull the tool down a little and guide it up quickly, and the cable retracts smoothly again. There’s no lever or button; the lock responds to how you move the tool.

Does the ratchet lock work if I mount the balancer horizontally?

No. The TECNA and Kromer ratchet locks rely on gravity and a straight-down cable pull, so they only engage when the balancer is hung vertically. Mounted horizontally or at a steep angle, the lock won’t catch reliably. Hang it overhead or on a vertical support. (A few application-specific exceptions exist — contact us if that’s your situation.)

Can the ratchet lock be turned off?

Yes. On TECNA locking balancers the ratchet can be disabled, so the same unit runs as a standard always-retracting balancer whenever you don’t need the hold.

Can I use a locking balancer for an EV charging cable?

Yes — it’s a common use. The lock holds the connector and cable at a set height so the balancer isn’t pulling on the cable while a vehicle charges, then retracts the cable cleanly out of the way afterward.

Is the lock meant to hold the tool while I swap it out?

No. The automatic lock is for parking the tool at a working height. Support the tool by hand before adding or removing weight — don’t use the lock for load changes.

Conclusion

Ratchet locking balancers and retractors offer a unique combination of safety, ergonomics, and control for industrial applications. By allowing operators to lock tools at a desired working height, they reduce fatigue, minimize the risk of accidental drops, and streamline repetitive tasks.

The Tecna 9346L–9350 series, along with their extended cable travel versions, deliver proven reliability for a wide range of weights and work environments. For those who need alternative options, Kromer retractors provide another trusted solution with excellent durability.

Whether you call them a locking retractor, a locking balancer, a retractor with a ratchet lock, or a balancer with ratchet lock, these devices are designed to keep tools safe, accessible, and perfectly positioned. Choosing the right model for your tool weight, cable length, and application will help you get the most out of your equipment—and ensure your operators work more comfortably, efficiently, and safely.
