In industries where flammable vapors, combustible dust, or volatile chemicals are present, grounding reels—also referred to as bonding reels or static discharge reels—play a crucial role in ensuring workplace safety. These devices provide a secure and efficient means of discharging static electricity, which, if left uncontrolled, can ignite hazardous atmospheres and lead to catastrophic accidents.

This guide explains what grounding reels are, how they work, where they’re used, and why they are essential for modern industrial operations.

What Are Grounding Reels?

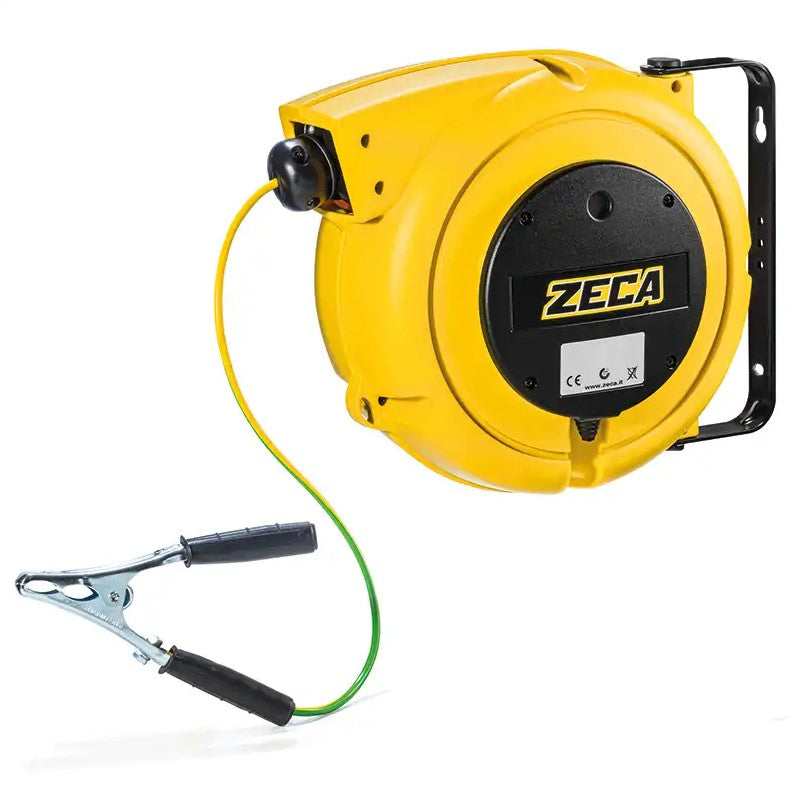

A grounding reel is a safety device designed to safely discharge static electricity by creating a continuous conductive path to earth ground. Typically housed in a durable reel body, it features a retractable conductive cable—commonly steel or copper—that ends in a heavy-duty clamp or terminal.

The key purpose of a grounding reel is to connect movable equipment, storage containers, or vehicles to a verified ground point, eliminating the buildup of static charges. Without this connection, static electricity can accumulate during normal operations, such as transferring fuel, moving powders, or filling chemical drums, increasing the risk of sparks.

Because of their design, bonding reels are easy to deploy: operators simply pull out the retractable cable and attach the clamp to the equipment being used. When not in use, the spring-loaded mechanism rewinds the cable, keeping it neat, protected, and ready for the next task.

How Grounding Reels Work

The effectiveness of a static discharge reel comes down to three main components:

1. The Cable

   • Made from conductive materials such as galvanized steel or copper.

   • Often coated in a protective layer like Hytrel® for resistance to chemicals, moisture, and UV exposure.

   • Standard lengths range from 20 feet to 100 feet depending on the application.

2. The Clamp or Connector

   • Heavy-duty clamps designed to pierce through paint, rust, or dirt to ensure metal-to-metal contact.

   • Typically rated for up to 150 amps to guarantee a strong grounding connection.

   • Equipped with stainless steel teeth, carbide tips, or copper jaws for reliable conductivity.

3. The Reel Housing and Retraction Mechanism

   • Spring-loaded or hand-crank systems keep the cable protected and prevent damage.

   • Housing materials may include Technopolymer, powder-coated steel or stainless steel for corrosion resistance.

   • Mounting options include wall, floor, ceiling, or vehicle installation, making them adaptable to different work environments.

Together, these components ensure a fast, secure, and reliable connection to ground, minimizing operator error and enhancing workplace safety.

Benefits of Using Grounding Reels

Investing in grounding reels provides several important advantages for businesses and workers alike:

• Improved Safety
  By preventing static sparks, grounding reels reduce the risk of fires and explosions in hazardous work areas.

• Regulatory Compliance
  Many industries, such as fuel handling and chemical processing, are required by OSHA, NFPA, and other standards to use bonding and grounding equipment.

• Ease of Use
  Retractable designs encourage consistent use, reducing operator error while keeping the workspace organized and free of tangled cables.

• Durability and Reliability
  High-quality static discharge reels are built to withstand harsh environments, from chemical plants to outdoor fueling stations.

• Versatility
  With a range of cable lengths, clamp designs, and housing options, grounding reels can be tailored to meet the needs of different industries and applications.

Common Applications of Grounding Reels

Grounding and bonding reels are used across a wide variety of industries. Some of the most common applications include:

1. Fuel Transfer and Refueling

• Tanker trucks, aviation fueling stations, and gas terminals use static discharge reels to ground vehicles and equipment during fuel transfer.

• Without proper grounding, the flow of fuel can generate static electricity that may ignite vapors.

2. Chemical and Pharmaceutical Industries

• In facilities where volatile chemicals or solvents are handled, bonding reels protect against static sparks during mixing, transferring, or filling processes.

• They are essential for safely grounding drums, IBCs, and mixing tanks.

3. Powder Handling and Manufacturing

• Operations involving powders and dusts (such as food processing, pharmaceuticals, and plastics manufacturing) use grounding reels to prevent dust explosions.

• Static discharge reels ensure safe handling in environments where airborne dust can become explosive.

4. Mobile Service and Utility Trucks

• Service trucks and field equipment rely on bonding reels to establish ground during fueling, maintenance, or chemical handling.

• Compact, retractable reels make them easy to use on the go.

5. General Industrial Applications

• Assembly plants, warehouses, and maintenance facilities use grounding reels to bond and ground equipment ranging from strapping tools to large machinery.

• Even when the risk of explosion is low, static discharge reels improve safety and compliance.

Choosing the Right Grounding Reel

When selecting a static discharge reel, consider these key factors:

• Cable Length: Choose a reel that provides enough reach without excess slack.

• Clamp Rating: Look for clamps rated for at least 100 amps.

• Housing Material: Technopolymer or Stainless steel for harsh or corrosive environments; powder-coated steel for standard use.

• Mounting Options: Decide whether the reel will be wall-mounted, ceiling-mounted, or vehicle-mounted.

• Environmental Resistance: Ensure resistance to chemicals, UV exposure, and extreme temperatures if used outdoors.

• Certifications: Check compliance with safety standards relevant to your industry (e.g., FM, ATEX, OSHA, NFPA).

In Summary

Grounding reels, bonding reels, and static discharge reels are essential safety tools in today’s industrial landscape. They provide a simple, reliable, and effective method for controlling static electricity and preventing sparks in environments where flammable vapors, powders, or chemicals are present.

From fueling stations and chemical plants to manufacturing facilities and mobile service trucks, grounding reels protect people, equipment, and facilities while ensuring compliance with safety standards. Investing in the right reel is not just a regulatory requirement—it’s a smart step toward safeguarding your operations.
