Balancer ENDO ELF-9 (11 to 20lb, 8.2ft)

$798.70

SKU: ELF-9

The ENDO tool balancer series ELF is designed to provide a true zero-gravity experience with smooth cable travel throughout the stroke.

Capacity: 11 to 20 lb (5 to 9 kg)
Cable Length: 8.2 ft (2500 mm)

Download Manual

Quantity:

- +

Add to Wishlist Added to Wishlist

Ships in 5 business days!

Ask us any Question

Description

The ENDO ELF-9 is a long-stroke spring balancer for hand tools in the 11–20 lb range — nutrunners, drills, grinders — where a standard 4.3 ft stroke is not enough reach. The 8.2 ft cable travel covers full work envelopes on assembly stations and line-side work.

The ELF series combines the EWF mechanism with a long cable, a manual drum lock for easy tool change-out, and a fully enclosed casing that eliminates pinch points.

Specifications

Capacity: 11– 20 lb (5.0–9.0 kg)
Factory-set load: 15.4 lb (7.0 kg)
Cable travel: 8.2 ft (2.5 m)
Wire rope: carbon steel, 0.12 in (3.0 mm)
Unit weight: approx. 11.9 lb (5.4 kg)
Fall-arrest device standard — if the spring ruptures, a safety pin stops the tool from falling anywhere in the stroke

Lighter tool? See the ELF-5 (6.6–11 lb). Heavier? Continue with the ELF-15 (20–33 lb) and up.

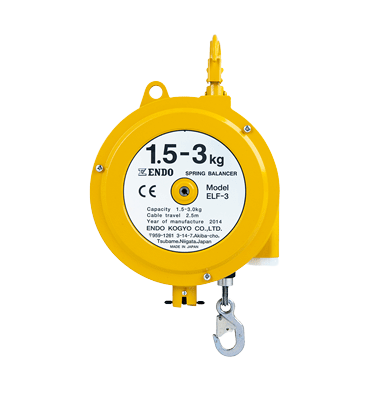

ENDO ELF-3, ELF-5 and ELF-9 long-stroke spring balancers
