Manufacturing environments demand precision, efficiency, and worker safety. Tool balancers have become essential equipment for achieving these goals, supporting tools and components to reduce operator fatigue while maintaining smooth production workflows. However, choosing between electric tool balancers and traditional spring tool balancers can significantly impact your operation's performance.

Understanding the key differences between these two technologies will help you make an informed decision that aligns with your production requirements, budget constraints, and long-term operational goals. The choice between electric and manual systems affects everything from cycle time reduction to automation compatibility. Let's explore how each technology works and when to implement it in your facility.

What is a Tool Balancer and Why Does It Matter?

A tool balancer is a device designed to support and balance heavy hand tools or equipment commonly used in industries like manufacturing, assembly lines, and construction. Equipped with an adjustable tension spring, it counterbalances the weight of the tool, making it significantly easier for operators to handle.

The benefits of tool balancers are substantial. They help reduce arm strain, enhance precision, and boost overall productivity. Whether you're installing cabinetry, assembling machinery, or tackling a weekend DIY project, a tool balancer can make your work safer, more efficient, and less physically demanding.

Components of a Tool Balancer

The following are the typical components of a tool balancer:

• Spring: The spring is the most critical component of a tool balancer. It generates the force required to balance the weight of the tool and acts as a counterbalance.
• Cable: The cable connects the tool or equipment to the spring and allows it to move up and down smoothly. They can be constructed from either stainless steel or synthetic rope.
• Hook: The hook is the attachment point for the tool or equipment being balanced. It must be strong enough to hold the weight of the tool and allow it to move freely.
• Safety mechanisms: Tool balancers come equipped with safety mechanisms to prevent the tool from falling in case of cable failure or improper use. These can include brakes, lockouts, and adjustable cable stops.
• Housing and Mounting Bracket: The housing contains the spring, cable, and other internal components of the tool balancer and protects them. The mounting bracket attaches the tool balancer to a fixed point, such as a wall or ceiling.
• Electric motor: The main difference between spring tool balancers and electric tool balancers is the electric motor. Instead of a tension spring, electric tool balancers use a motor to balance the weight of the tool.

What are Spring Tool Balancers?

Traditional tool balancers, also known as tool retractors or spring balancers, are mechanical devices that use springs to counterbalance a tool's weight. Simple and reliable, they’ve been widely used for decades.

Tool balancers are built to last. They come in various sizes and weight capacities, accommodating tools from lightweight screwdrivers to heavy power drills. They are also essential in industrial tool support systems. Using spring tension, they counterbalance tool weight, creating a floating effect that allows operators to position tools with minimal effort.

These balancers offer several advantages. Their mechanical simplicity reduces maintenance and downtime. Without electrical components, they don’t consume power and are easy to install. This makes them a cost-effective and reliable option for many facilities.

However, they do have limitations. Load control precision depends on spring calibration and mechanical adjustments, which may not meet the needs of highly precise operations.

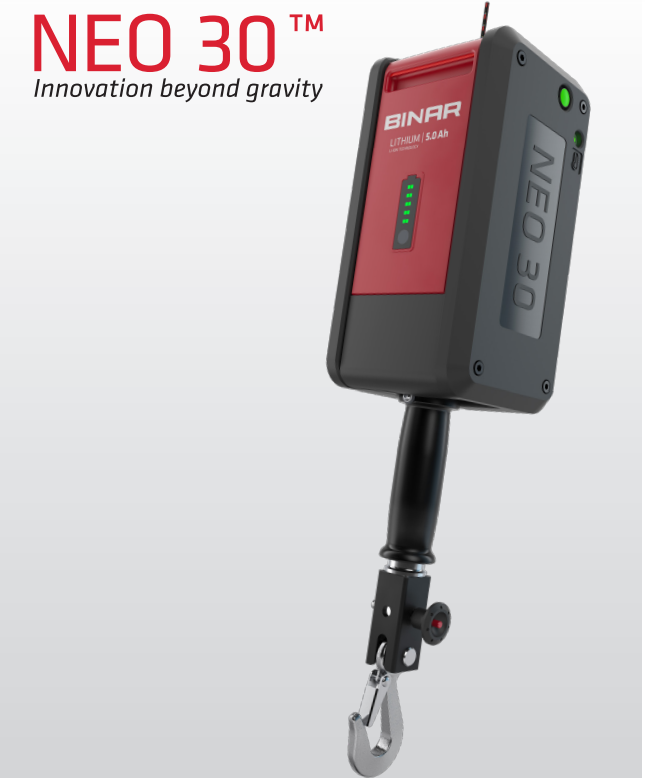

What are Electric Tool Balancers?

Electric tool balancers are the next step in tool support technology. Using electric motors and advanced control systems, they offer precise load management and positioning beyond mechanical alternatives.

Unlike traditional balancers, electric systems use servo or stepper motors with advanced algorithms for accurate load control and programmable positioning tailored to specific needs. They maintain precise tool positions, execute programmed movements, and integrate easily with automated production systems.

Electric tool balancers are ideal for applications needing exact positioning and repeatability, even when the weight of the load changes. The electric motor provides a consistent force throughout motion. This consistency is especially useful in precision assembly and automated manufacturing. Electric balancers can be used to move the load from one place to another, while Spring balancers cannot.

Modern electric tool balancers also include safety features like emergency stops, overload protection, and position feedback, enhancing workplace safety and reliability.

Key Differences Between Electric Tool Balancers and Regular Tool Balancers

The operational differences between electric and manual spring balancers extend far beyond their power sources. Understanding these distinctions helps identify which technology aligns with your specific requirements.

Precision and Control

Load control precision represents the most significant difference between these technologies. Electric tool balancers deliver exceptional positioning accuracy through digital control systems that maintain precise tool placement within millimeters. This precision remains consistent regardless of load variations or environmental conditions.

Manual tool balancers rely on mechanical spring tension, which provides adequate positioning for many applications but lacks the precision capabilities of electric systems. Spring characteristics can vary with temperature changes, usage patterns, and material aging, potentially affecting positioning consistency over time.

Speed and Responsiveness

Electric tool balancers offer superior speed control and responsiveness. Operators can adjust lifting and lowering speeds through digital controls, optimizing cycle time reduction for specific applications. Variable speed capabilities allow fine-tuning of movement characteristics to match production requirements.

Traditional balancers operate at speeds determined by spring characteristics and operator input. While experienced operators can achieve efficient movement patterns, the speed remains limited by mechanical constraints and human reaction times.

Integration and Automation Compatibility

Automation compatibility sets electric tool balancers apart from manual alternatives. Electric systems integrate seamlessly with programmable logic controllers (PLCs), manufacturing execution systems (MES), and other automated equipment. This integration enables coordinated movements, automated positioning sequences, and data collection capabilities.

Traditional tool balancers operate independently of automated systems, requiring manual intervention for all positioning and movement operations. While this independence can be advantageous in certain applications, it limits integration possibilities in automated manufacturing environments.

Load Capacity

Another essential factor to consider when choosing between electric and traditional tool balancers is their load capacity. Traditional tool balancers have a limited load capacity range. It can be 1 to 2 lb or 100 to 120 lb, depending on the model, but never 0 to 100 lb.

In contrast, electric tool balancers have a much higher load capacity range and can run from 0 to 60lb, for example. This means that an electric balancer would be a better option if you're working with different loads.

Maintenance and Reliability

Maintenance requirements differ significantly between the two technologies. Manual spring balancers feature fewer moving parts and no electrical components, typically requiring only periodic checks. This simplicity translates to lower maintenance costs and reduced downtime for routine service.

Electric tool balancers require more comprehensive maintenance protocols, including electrical system inspections, motor servicing, and control system updates. However, modern electric systems incorporate diagnostic capabilities that enable predictive maintenance strategies, potentially reducing unexpected failures.

When to Use Electric Tool Balancers

Electric tool balancers excel in specific applications where their advanced capabilities provide significant operational advantages. Understanding these scenarios helps identify optimal implementation opportunities.

High-Precision Assembly Operations

Manufacturing environments requiring exact tool positioning benefit significantly from electric tool balancers. Electronics assembly, medical device manufacturing, and precision machining operations often demand positioning accuracy that exceeds manual spring balancer capabilities.

Automated Production Lines

Automation compatibility makes electric tool balancers ideal for integrated manufacturing systems. These powered balancers can receive positioning commands from central control systems, execute programmed movement sequences, and provide position feedback to optimize production workflows.

The ability to coordinate tool balancer movements with other automated equipment enables sophisticated manufacturing processes that would be impossible with manual systems. This coordination capability often justifies the higher initial investment through improved productivity and reduced labor requirements.

High-Volume Production Environments

Operations focused on cycle time reduction benefit from the electric tool balancers' speed and programmability features. The ability to optimize movement patterns, adjust speeds for different operations, and eliminate manual positioning time can significantly improve throughput in high-volume production environments.

Applications Requiring Data Collection

Electric tool balancers equipped with sensors and data logging capabilities support quality control and process optimization initiatives. These systems can track positioning accuracy, cycle times, and usage patterns to identify opportunities for improvement and maintain process documentation.

When to Use Regular Tool Balancers

Manual spring balancers remain the preferred choice for numerous applications where their simplicity and reliability provide optimal solutions. Recognizing these scenarios ensures appropriate technology selection.

Cost-Sensitive Applications

Budget constraints often favor manual spring balancers, particularly for smaller operations or applications where advanced features don't justify additional costs. The lower initial investment and reduced maintenance expenses make manual systems attractive for cost-sensitive environments.

Simple Tool Support Requirements

Applications requiring basic tool weight support without precision positioning can achieve excellent results with traditional load balancers. General assembly operations, maintenance activities, and material handling tasks often fall into this category.

Harsh Environmental Conditions

Manufacturing environments with extreme temperatures, high humidity, or corrosive atmospheres may favor manual tool balancers due to their simpler construction and reduced electronic component exposure. Mechanical systems typically demonstrate superior resilience in challenging conditions.

Maintenance-Critical Operations

Facilities with limited maintenance capabilities or extended operating schedules may prefer manual spring balancers due to their minimal service requirements. The mechanical simplicity reduces the need for specialized technical expertise and expensive replacement components.

FAQs

Are spring balancers considered traditional tool balancers?

Yes, spring balancers are a type of traditional tool balancer that uses a coiled spring to achieve balance. They are commonly used in industrial settings for tasks like welding and assembly.

How does a tool balancer help increase productivity?

A tool balancer ensures tools are always within easy reach, eliminating the need to search or reposition them during work. This seamless accessibility allows workers to focus on their tasks, significantly increasing productivity in the workplace.

What is the retraction force in a tool balancer?

Retraction force refers to the force applied by the balancer to retract or pull the tool back to its original position after use. Properly adjusted retraction force reduces strain on the user and helps maintain consistent performance.

How do tool balancers reduce damage to tools?

Tool balancers securely carry and support tools, preventing accidental drops or unnecessary wear and tear. This reduces damage, extending the lifespan of tools and saving money on replacements or repairs.

Can a tool balancer handle heavy-duty tools?

Yes, heavy-duty tool balancers are specifically designed to support larger and heavier tools. They provide stability and ease of use while ensuring that the tool's weight doesn't strain the operator.

Conclusion

While both electric tool balancers and standard tool balancers serve the purpose of improving workplace efficiency and reducing operator fatigue, their specific functions and applications set them apart.

Electric tool balancers are best suited for moving loads from point A to point B and variable weights. In contrast, standard tool balancers are ideal for simpler, more straightforward tasks. Understanding these differences is key to selecting the right solution for your workflow, ensuring improved productivity and safety in your workspace.
