ENDO Tool Balancers – A Complete Buyer’s Guide & Comparison

In today’s industrial assembly and manufacturing operations, maintaining high productivity while protecting your operators from fatigue is more important than ever. One of the proven solutions for ergonomic tool handling is the use of spring-driven tool balancers — devices that suspend a tool or assembly device from an overhead point so the operator effectively feels “weightless” when manipulating it.

This article focuses on the ENDO Tool Balancer line (from Endo Kōgyō Co., Ltd. of Niigata, Japan) and explores how to select the right series, what the key specifications mean, and how ENDO models compare with alternatives in the market. Whether you represent a manufacturing line, an ergonomics manager, or a distributor like us at BD Solutions LLC (ToolBalancersUSA.com), this guide will help you make an informed choice.

What is a Tool Balancer and Why Use One?

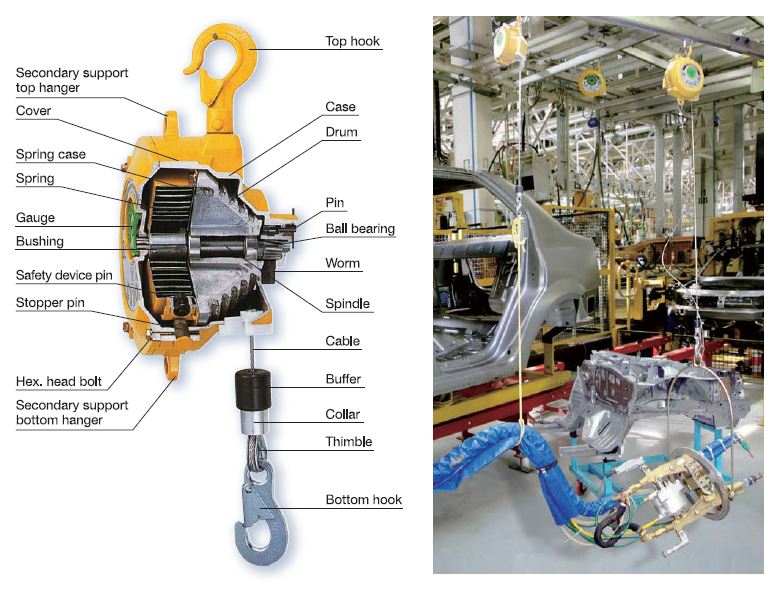

A tool balancer is essentially a mechanical spring mechanism with a tapered drum (or equivalent compensating mechanism) that suspends the weight of a tool from an overhead anchor point. As the operator moves the tool up or down, the spring compensates for the weight so the operator doesn’t feel the full mass — thus reducing shoulder strain, improving cycle time, and enhancing consistency.

Key benefits:

Reduced operator fatigue and ergonomic strain over long shifts.
Increased throughput: tool is suspended and ready at the point of use.
Improved safety: less risk of dropping heavy tools or tangled hose/cords.
Cleaner work area: tool cords/hose stay overhead, off the floor.

For ENDO’s standard spring balancers, the manufacturer states that the units “improve working efficiency and diminish worker fatigue” and “make the position of a tool stable and contribute to accurate work.”

Overview of ENDO Tool Balancer Series

ENDO offers a wide array of models, organized into series depending on capacity, stroke (cable travel), and application. G

General categories and capacities:

Series & Capacity Ranges

EK Series: Capacities ~ 0.5 kg to 1.5 kg (approx. 1.1 to 3.3 lb).
ERP Series: Around 0.3kg to 2.0kg (compact retractors).
EW Series: ~1.0kg to 5.0kg (2.2 to 11 lb) – standard duty.
EWS Series: ~1.5kg to 7.0kg (3.3 to 15.4 lb) – safe/low exposed drum version.
EWF Series: Up to ~120kg (~264 lb).
ELF Series: Long-stroke versions, 8.2 ft (2.5 m) travel.
ETP Series: Heavy-duty capacities, e.g., 120kg to 200kg (264 lb to 440 lb).

Example Model Chart (for quick reference)

Series	Cable Travel (approx)	Capacity Range
EWS-3	4.3 ft (1.3 m)	3.3 to 6.6 lb
EWF-15	4.3 ft (1.3 m)	20 to 33 lb
ELF-9	8.2 ft (2.5 m)	11 to 20 lb
ETP-16	3.9 ft (1.2 m)	375 to 441 lb

Key Features for ENDO Balancers

The tapered drum mechanism ensures constant tension on the cable, meaning the user feels near-zero net weight throughout the travel.
High quality springs and bearings for smooth cable travel.
Built-in safety features: support for secondary chains, buffer collars, etc. Diverse application variants such as clean-room versions

How to Choose the Right ENDO Balancer for Your Application

Selecting the correct tool balancer is crucial for both ergonomics and tool life. Here’s a step-by-step guide:

1. Determine Total Tool Weight

Include the weight of the tool plus any attachables (hose, cable, quick coupler, swivel, fixture) because the balancer must support the total suspended mass.

2. Choose Capacity Range

Select a balancer where your total weight falls within the rated range (ideally toward the upper end of the range) so you get proper cable tension.

3. Select Appropriate Cable Travel (Stroke)

Determine how far the tool needs to move up and down.

Standard models may have 4-5 ft travel (1.3-1.5 m)
For larger work envelopes choose the long-stroke ELF series (~8.2 ft or 2.5 m) or customize.

4. Match Series to Environment

Cleanroom / food industry: choose food-grade grease, unpainted housing, or stainless options.
Heavy tools / overhead: use EWF or ETP series for 100+ kg capacities.

5. Safety & Installation

Mounting structure must be rated for the tool + balancer + accessories.
Use secondary anchorage (safety chain) if local regulation requires.
Adjust the spring tension (many ENDO models have worm gear or screw adjust) to match tool weight.
Inspect periodically: check cable wear, correct tension, safe hook/swivel.

Comparison: ENDO vs Other Brands

While ENDO is a strong contender, you should also consider how it stacks up relative to competitors you likely carry and service, especially given your industrial distribution role.

Strengths of ENDO

Japanese manufacturing with high quality standards (e.g., ISO 9001).
Broad capacity range: from ultra-light to heavy (hundreds of lbs).
Long-stroke options (ELF series) that are suitable for workstations with significant vertical travel.

Typical Installation Scenarios & Applications

Here are typical use-cases for ENDO tool balancers, along with best practice advice:

Automotive general assembly: Hanging electric screwdrivers, nutrunners overhead, balancing 10-20 lb tools. Choose an EW/EWF series, cable travel ~4 ft, mount on ceiling structure or monorail.
Heavy duty torque station: Tool weight 100-200 lb or more, limited vertical room — select an ETP series balancer with shorter travel but heavy capacity.
Cleanroom/food-industry environment: Use food grade versions (EWF-X or EW-X) with stainless hooks, unpainted housing, certified grease.
Long-travel workstation: If the tool drops down to operator level and then up above reach (for example >8 ft travel), use ELF series (8.2 ft travel) or negotiate custom travel length.

Installation Tips

Mount the balancer so the cable runs vertically or close to vertical. Avoid sharp angles that cause wear.
If multiple balancers are used in close proximity, stagger heights so cables don’t interfere.
Use safety chain/secondary anchorage especially for heavy loads.
Periodically check the spring tension and cable condition (frays, kinks).
Provide operator training: when tool truly “floats” it’s easier to maintain high throughput and accuracy.

Service & Maintenance — What to Expect

ENDO provides documentation (catalogues/manuals) that outline inspection criteria, tension adjustment, and warranty/service parameters.

Key points:

Spring tension should be set to match tool weight; factory set is typically mid-point of capacity range.
Cable drums, springs, and bearings are wear items — depending on usage (cycles/day) you may need periodic inspection or overhaul.
The warranty (for many ENDO models) is 18 months on parts when used per guidelines.
For longer service life, keep the environment clean (remove adhesive spray, weld spatter), ensure mounting bracket is rigid, and replace cables as soon as visible wear appears.

Summary

ENDO tool balancers are a comprehensive, high-quality choice for industrial ergonomics and tool suspension systems. Their broad product lineup—from ultra-light to very heavy loads, standard to long-stroke models, and specialty clean-environment variants—makes them highly versatile.

When selecting a model, remember to:

Determine total suspended mass (tool + accessories).
Choose a capacity range where your weight falls preferably toward the upper end.
Select appropriate stroke/cable travel based on workstation geometry.
Match the series to your environment and application demands (cleanroom, heavy duty, long travel).
Install properly and maintain regularly for maximum safety and lifetime value.

As your distributor partner, at BD Solutions LLC we carry ENDO models and can help you cross-reference, quote, and answer application questions. If you’d like a model-by-model comparison table (for example comparing ENDO vs Tecna vs Kromer) or specific help sizing a balancer for a line in your facility, just let us know — we’d be happy to build that for you.
